SE24-2PM
FEATURES
●Accepts ENGLAND type plug
●Heavy-duty, high-quality design
●Deep knurled socket sleeve for positive gripping
●Proven and positive connection using ball-locking mechanism
APPLICATIONS
●Sleeve type couplings are widely used to connect air lines and can also be used with low pressure fluids.
●Their compact and economical design uses a ball locking mechanism consisting of captive steel balls that engage the
locking groove on the mating nipple.The sliding spring loaded sleeve on the coupler must be manually retracted in order to connect or disconnect the nipple. It is easy to do but two hands are normally required.
●Common applications include: compressed air,water,grease, paint,limited vacuum and limited gases.
SPECIFICATIONS
| Body Size(in.) | 1/4 |
| Rated Pressure(PSI) | 300 |
| Temperature Range(Std .seals)* | -40° |
| Locking Device | 4 balls |
| Vacuum Data(inches Hg) Disconnected(coupler only) Connected |
Not recommended 27.4 |
CONSTRUCTION
●Socket Body: Brass,Steel
●Backnut: Brass,Steel
●Sleeve: Brass,Steel
Valve:Steel
●Valve Spring:Steel
Locking Balls: Steel
●Seals:Buna-N/Nitrile
●Surface Finish: Copper color,Zinc-plated,Nickel-plated

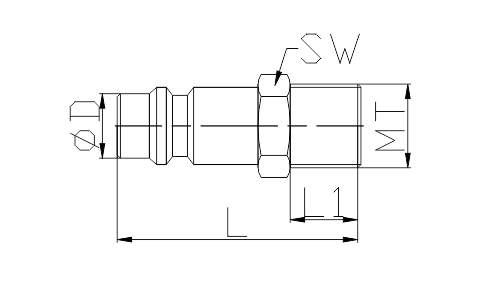

MALE THREAD
| P/N | L | ΦD | L1 | SW | MT |
| SE24-2PM | 29.5 | Φ5.5 | 15.2 | 10 | 1/8 "BSP |
| SE24-3PM | 32 | Φ5.5 | 17.7 | 14 | 1/4 "BSP |
