STT-6PH
FEATURES
●The smooth, open bore with no valving in either half offers minimal pressure drop and allows easy cleaning in applications where the same lines are used for more than one media.
SST couplers and nipples are machined from solid bar stock providing the quality coupling that is durable.
SST nipple are available in brass and zinc-plated steel. The ball locking grooves of the steel LST nipples are case hardened for resistance to brinelling where high cycle rates and pressure surges are encountered.
The SST is an "Interchange"coupling because the dimensionally and functionally can interchange with simiar couplings made by other manufactures.
Compatible with PARKER ST Series, HANSEN ST Series, FOSTER FST Series.
APPLICATIONS
The SST Series are non-valved couplings for applications where maximum flow is required. Their smooth, open bore offers the lowest pressure drop of any quick coupling design and is ideal forapplications such as high-pressure water and steam washers, carpet cleaners and mold coolant lines and many other non-valved applications.
SPECIFICATIONS
| Body Size(in.) | 1/4 | 3/8 | 1/2 |
| Rated Pressure(PSI) | |||
| Temperature Range(Std .seals) | -40° to+250° F. | ||
| Brass Cplr/Npl | 5200 | 2700 | 2200 |
| Brass Cplr/Steel Npl | 5500 | 3500 | 2700 |
| SS CpIr/Npl | 6700 | 5500 | 3000 |
| Rated Flow | 6 | 12 | 12 |
CONSTRUCTION
●Socket Body: Brass, Steel, Stainless Steel
●Backnut: Brass, Steel, Stainless Steel
●Sleeve: Brass, Steel, Stainless Steel
●Valve: Steel
●Locking Balls: Steel, Stainless Steel
●Seals: Buna-N/Nitrile
● Surface Finish: Copper color, Zinc-plated

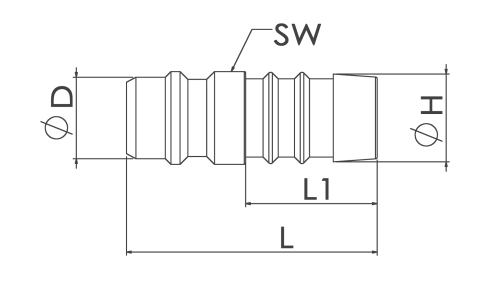

HOSE BARB
| P/N | L | ΦD | L1 | SW2 | ΦH |
| STT-6PH | 40 | Φ13.3 | 21 | 14.8 | Φ14 |
