SUG3-2SM
FEATURES
●Push-to-Connect design for easy one hand operation.
●Avariety of port configurations are available to meet specific needs.
●Standard Seals are Nitrile.
●Constructed of Zinc bodies and Zinc plated steel sleeves and nipples.
OPERATION
●Engineered for speedy coupling and uncoupling. To lock-push in; to unlock-give the coupler sleeve a 1/8 turn. Designed to protect against accidental uncoupling.
SPECIFICATIONS
| Body Size(in.) | 1/4 |
| Rated Pressure(PSI) | 300 |
| Temperature Range(Std .seals)* | -40° to+250° F. |
| Locking Device | CAM |
| Vacuum Data(inches Hg) Disconnected(coupler only) Connected |
Not recommended 27.4 |

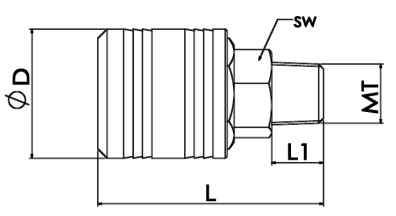

FEMALE THREAD
| P/N | L | ΦD | L1 | SW | MT |
| SUG3-2SM | 48.5 | Φ27.5 | 10.5 | 17 | 1/4 " BSP |
| SUG3-3SM | 49 | Φ27.5 | 11 | 17 | 3/8 " BSP |
| SUG3-4SM | 51.5 | Φ27.5 | 13.5 | 21 | 1/2 " BSP |
