● TheSHQ3 Series bring to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.
● SHQ3 Series conforms to the standard of ISO 5675.
● Compatible with PARKER 4000 Series, FASTER NV/NS Series.
Applications and Features
● TheSHQ3 Series bring to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.
● SHQ3 Series conforms to the standard of ISO 5675.
● Compatible with PARKER 4000 Series, FASTER NV/NS Series.
SPECIFICATIONS
| Body Size(in.) | 1/4 | 3/8 | 1/2 | 3/4 | 1 |
| Rated Pressure(PSI) | 5000 | 4000 | 4000 | 3000 | 3000 |
| Rated Flow (GPM) | 3 | 6 | 12 | 28 | 50 |
| Temperature Range(Std .seals) | -20℃ to+100℃ | ||||

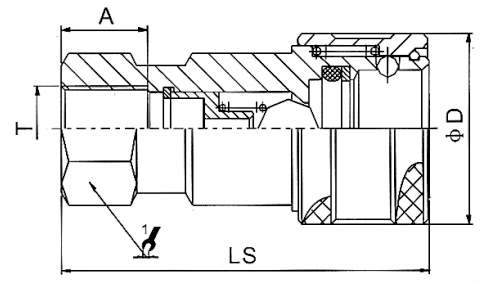

Socket
|
P/N |
LS |
ΦD |
1 |
A |
T |
|
SHQ3-02SF |
53.5 |
27.6 |
19 |
12.5 |
G1/4 NPT1/4 |
|
SHQ3-03SF |
63 |
34 |
24 |
13 |
G3/8 NPT3/8 |
|
SHQ3-04SF |
66 |
38.5 |
27 |
16 |
G1/2 NPT1/2 |
|
SHQ3-06SF |
82.5 |
48.2 |
34 |
19 |
G3/4 NPT3/4 |
|
SHQ3-08SF |
96.5 |
56.5 |
41 |
21 |
G1 NPT1 |
| Location: | China |
| Business Type: | Manufacturer, Exporter |
| Brands: | |
| Certificate: | |
| Model: | |
| Terms of payment and delivery: | |
| Minimum order quantity: | |
| Price: | Consultation |
| Packing details: | |
| Delivery time: | |
| Payment method: |
Ningbo Sinppa Air Tools Factory is leading SHQ3 BALL VALVES TYPE HYDRAULIC QUICK COUPLING(STEEL) factory. OEM/ODM optional. Company was established in Oct, 2001, covers over 10,000 square meters. It is an integrated set of industry and trade enterprise. Ningbo Jumson International Trade Co., Ltd is the branch company for import and export business. For now, there are about 150 employees and many different departments in Sinppa, including sales dep, purchasing dep, produce dep, technology dep, testing dep and after sales dep. Our business has extended all over to many countries in Europe, Americas and south Asia. We manufacture and export SHQ3 BALL VALVES TYPE HYDRAULIC QUICK COUPLING(STEEL) worldwide.
