● The SHQ4 Series bring to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.
● SHQ4 Series conforms to the standard of ISO 5675
● Compatible with PARKER 4250 Series.
Applications and Features
● The SHQ4 Series bring to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.
● SHQ4 Series conforms to the standard of ISO 5675
● Compatible with PARKER 4250 Series.
SPECIFICATIONS
| Body Size(in.) | 1/2 |
| Rated Pressure(PSI) | 4000 |
| Rated Flow (GPM) | 12 |
| Temperature Range(Std .seals) | -20℃ to+80℃ |

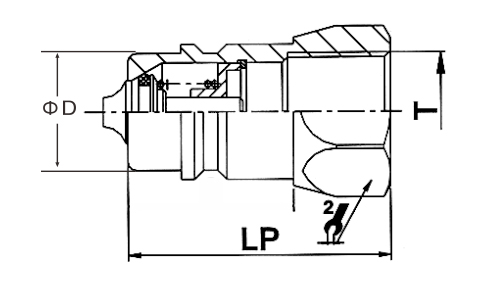

Plug
|
P/N |
LS |
ΦD |
1 |
T |
|
SHQ4-PF3/8 |
61.5 |
20.5 |
27 |
BSP3/8 NPT3/8 |
|
SHQ4-PF1/2 |
64 |
20.5 |
27 |
BSP1/2 NPT1/2 |
|
SHQ4-PF3/4 |
64.5 |
20.5 |
34 |
BSP3/4 NPT3/4 |
|
SHQ4-PFM14 |
61.5 |
20.5 |
27 |
M14X1.5 |
|
SHQ4-PFM16 |
61.5 |
20.5 |
27 |
M16X1.5 |
|
SHQ4-PFM18 |
61.5 |
20.5 |
27 |
M18X1.5 |
|
SHQ4-PFM22 |
64 |
20.5 |
27 |
M22X1.5 |
